Drawing Symmetrical Chains

Today's post will be about how to draw a symmetrical arc, which can be used to represent chains in tatting diagrams. This is something that has come up in the online Inkscape discussions, and a few members were trying to find solutions to the problem. I found something that works pretty well, and I will share it below.

To begin, open Inkscape and select the Pencil tool. You will need to draw either a horizontal or a vertical line. (Due to limitations in the software, this method will NOT work with diagonal lines. However, after you have made your symmetrical arc, you can always rotate it into the correct position later on).

To draw a horizontal line, use the Pencil tool to click a point on the screen, then hold the CTRL key and click on another point to the right of your original location. The CTRL key will help keep the line in a horizontal position (or a vertical position, if you are drawing a vertical line).

Next, we need to switch to the Node tool (F2) to add a central node to the line. With the node tool, click on your line, and then click on the icon at the top of the screen to "Insert new nodes into selected segments":

This will place a new node in the middle of your line:

Make sure the central node is still selected before proceeding to the next step (the node will be blue when selected). Now, click on the icon at the top of the screen to "Make selected nodes symmetric":

This will change the appearance of the node from a diamond to a square. You should also notice a few small circular icons on either side of the node. These are called node handles:

If you do not see the node handles, please make sure that "Show Bezier handles of selected nodes" is turned on. This icon appears at the top of the screen when the node tool is selected. It looks like this:

To turn the line into an arc, we are going to select and drag the central node while holding the CTRL key on the keyboard. Make sure that the central node is the only node selected for this part (otherwise you will be moving the entire line):

Now it's time to edit the fullness of the arc. For this step, you will be clicking and dragging a node handle while holding CTRL on the keyboard. Remember that the node handles are the small circular icons on either side of the node.

You only have to choose one node handle to drag. The other node handle will automatically adjust along with it (this is what is meant by a "symmetrical node").

In the example below, I've dragged the right node handle to make the arc more full:

This is what the completed symmetrical arc looks like:

I can see this method being useful for creating bookmark or cross diagrams. If you can find a vertically or horizontally positioned chain within a doily diagram, this method can also be used there. Subsequent chains can be copy/pasted from the first chain and rotated and placed as needed.

Here is an example of a simple edging diagram containing symmetrical chains:

Only the first ring, chain, and picot set were drawn. I then grouped the first set, duplicated it, and moved each repeat into position using the arrow keys.

If you have questions about anything contained in this post, feel free to leave them in the comments section below.

Drawing Teardrop Shaped Rings: Alternative Method

On Wednesdays, a few members of the Online Tatting Class have been meeting to discuss using Inkscape to create tatting diagrams. I've been attending the early sessions, which are at 3 PM Eastern Standard Time.

During the first class, one of the members named Pixie shared an alternative method of creating teardrop shaped rings. I had previously used a different method, which can be found by clicking here.

This alternative method involves drawing an oval with the Circle tool, changing the oval into a Path, and then making the topmost node corner (which creates a pointed end). I've incorporated another step, which is to add a Spiro path effect to the ring, to smoothen out the curves.

Here is a step by step tutorial.

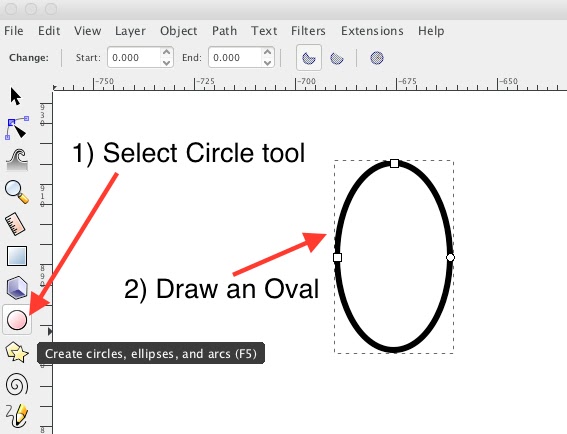

After opening Inkscape, you will need to draw an oval using the circle tool:

This oval needs to be changed to a Path, so that we can get editable nodes. To change it to a Path, select the oval and go to Path -> Object to Path on the main menu:

Once the oval has been changed into a Path, it should have four little square icons (called "nodes") around the perimeter. These will be visible only after the node tool (F2) is selected.

Select the Node tool, which is right underneath the cursor icon on the left side of the screen. Then, click on the topmost node of your oval, or whichever node you would like to make pointy (it will turn blue after it has been selected). Next, click on the icon at the top of the screen to "Make selected nodes corner". You will need to click on this icon twice to get a nice sharp point:

This is what the oval looks like afterwards. You can see the teardrop shape beginning to form:

We can smooth out the edges of the ring by adding a Path effect called "Spiro Spline". To do this, select your ring and go to Path -> Path effects on the main menu.

This will open up a new window on the right side of the screen. Click on the "+" icon to add a new effect:

After clicking the "+" icon, a pop up window will appear in the middle of the screen. Scroll down and select "Spiro spline" then click "Add":

This will smooth out the edges of the ring to make a nice teardrop shape:

If you want to reshape the ring, you can do so by using the resize arrows, which appear when the ring is selected with the Cursor tool (F1). The height and width can be adjusted pretty freely, and you don't have to worry about holding the CTRL key while resizing. Click here to read more about resizing shapes in Inkscape.

You can also adjust the shape of the ring by moving nodes with the node tool, but I don't think it's necessary in this case. However, if you would like to see a more detailed explanation of that please leave a comment down below and I will create a separate post with pictures.

After you have a shape that you like, remember to save it to a template file for future use. Copy/pasting images from a template file saves a lot of time when creating new diagrams.

In my next post I'll talk about how to draw symmetrical chains. The question popped up in our online Inkscape discussion a few weeks ago, and I've finally found a solution. I just need to take screenshots and compile a post.
